Package Contents

Overview​

This page details all components included in the UniFi AP-AC-Lite WiFi Access Point package. Please verify that all items are present before beginning installation.

What's in the Box​

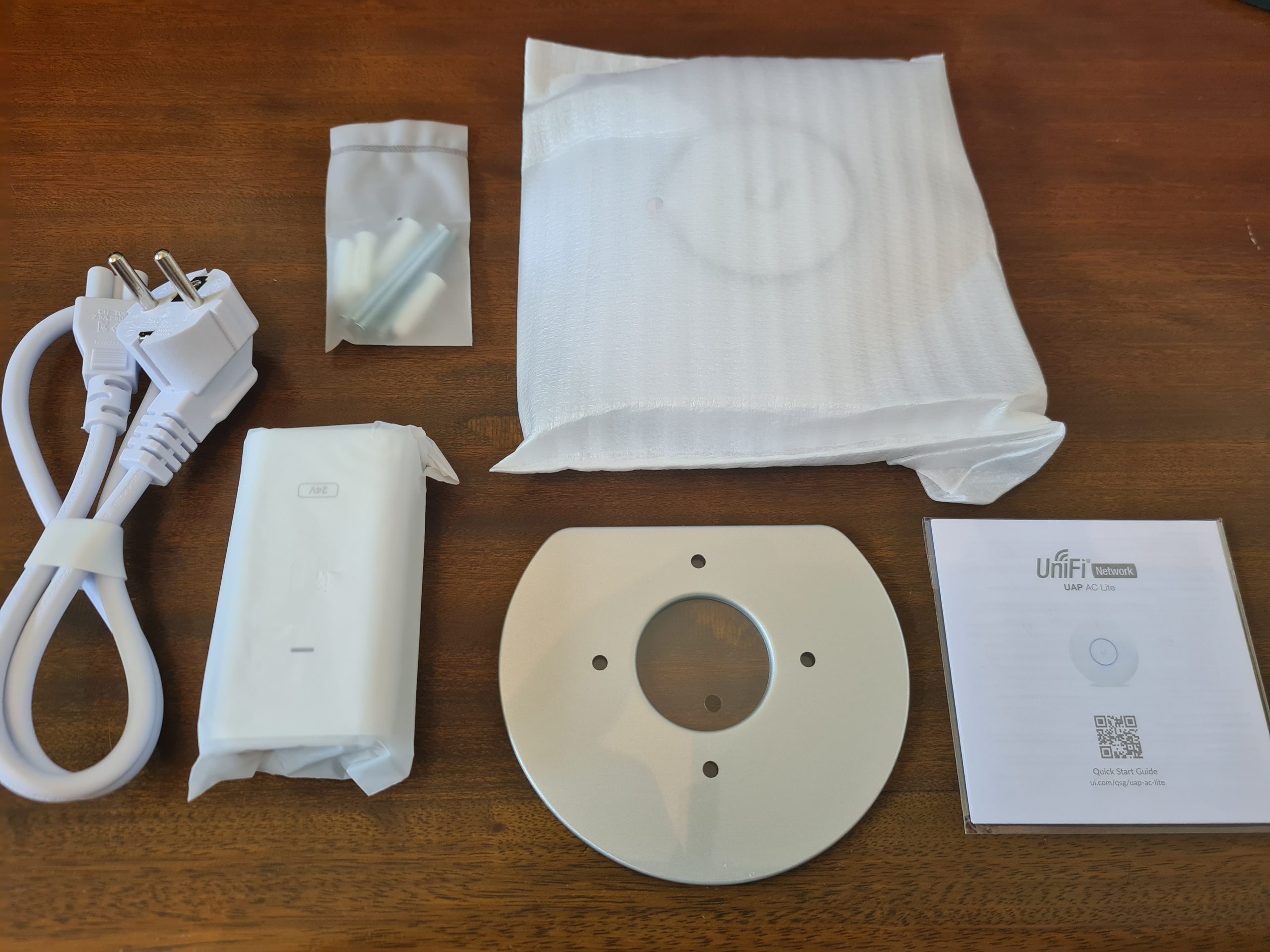

UniFi AP-AC-Lite Box Contents

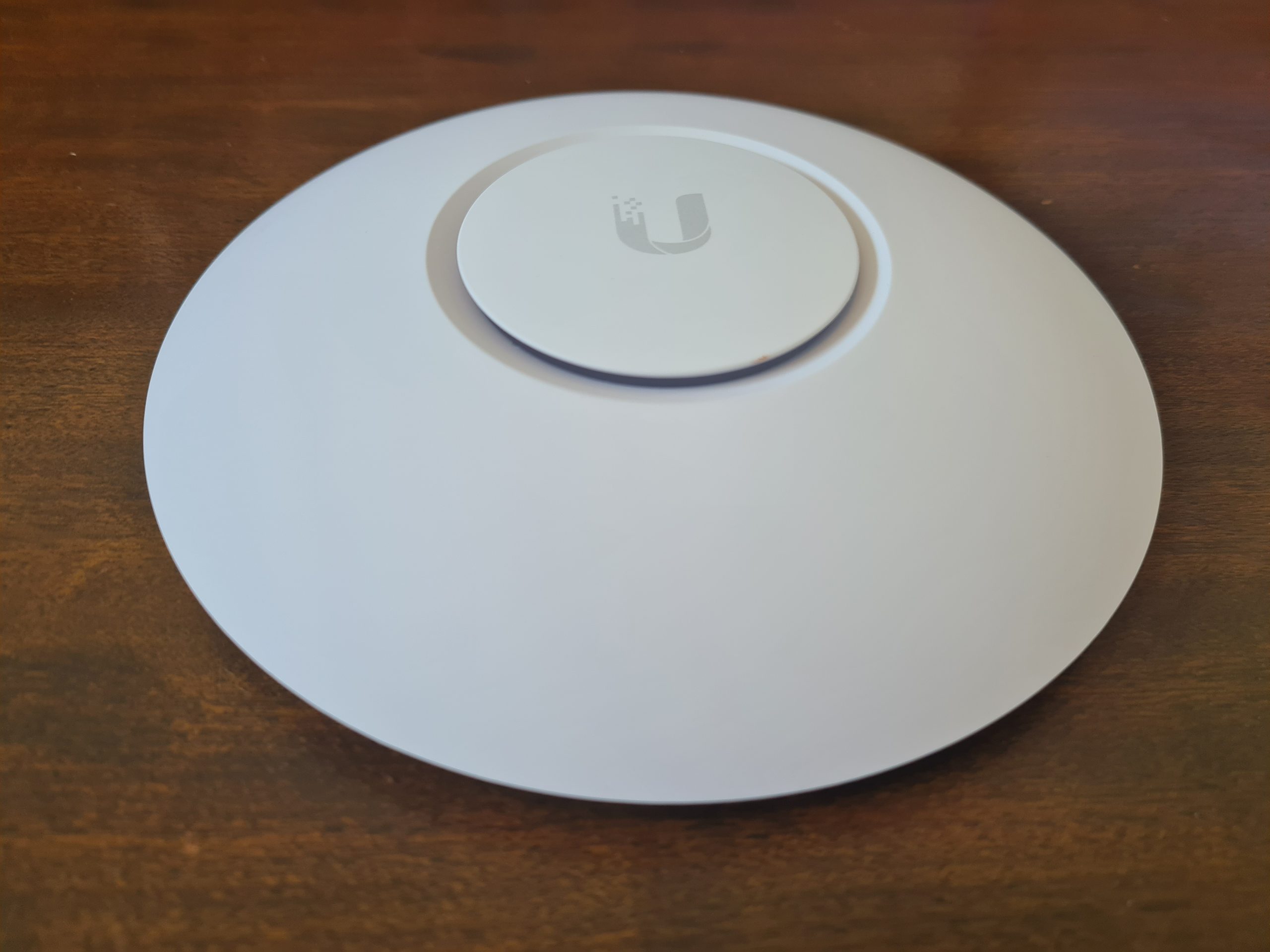

1. UniFi AP-AC-Lite Access Point​

The main wireless access point device that provides dual-band WiFi coverage.

UniFi AP-AC-Lite Device

Specifications:

  • Dual-band 802.11ac WiFi
  • 2.4 GHz and 5 GHz support
  • Compact, sleek design
  • LED status indicator
  • Reset button
  • Ethernet port for data and power

2. Power Adapter with Regional Plug​

The package includes a power adapter with the appropriate plug for your region.

USA Power Plug

Regional Variations:

  • USA/Canada: Type A/B plug (shown above)
  • UK/Ireland: Type G plug with 3-pin configuration
  • Europe: Type C/F plug
  • Australia/New Zealand: Type I plug

Note: UK customers may receive a USA plug adapter with a UK adapter included in the box. Please check all packaging materials for the appropriate regional adapter.

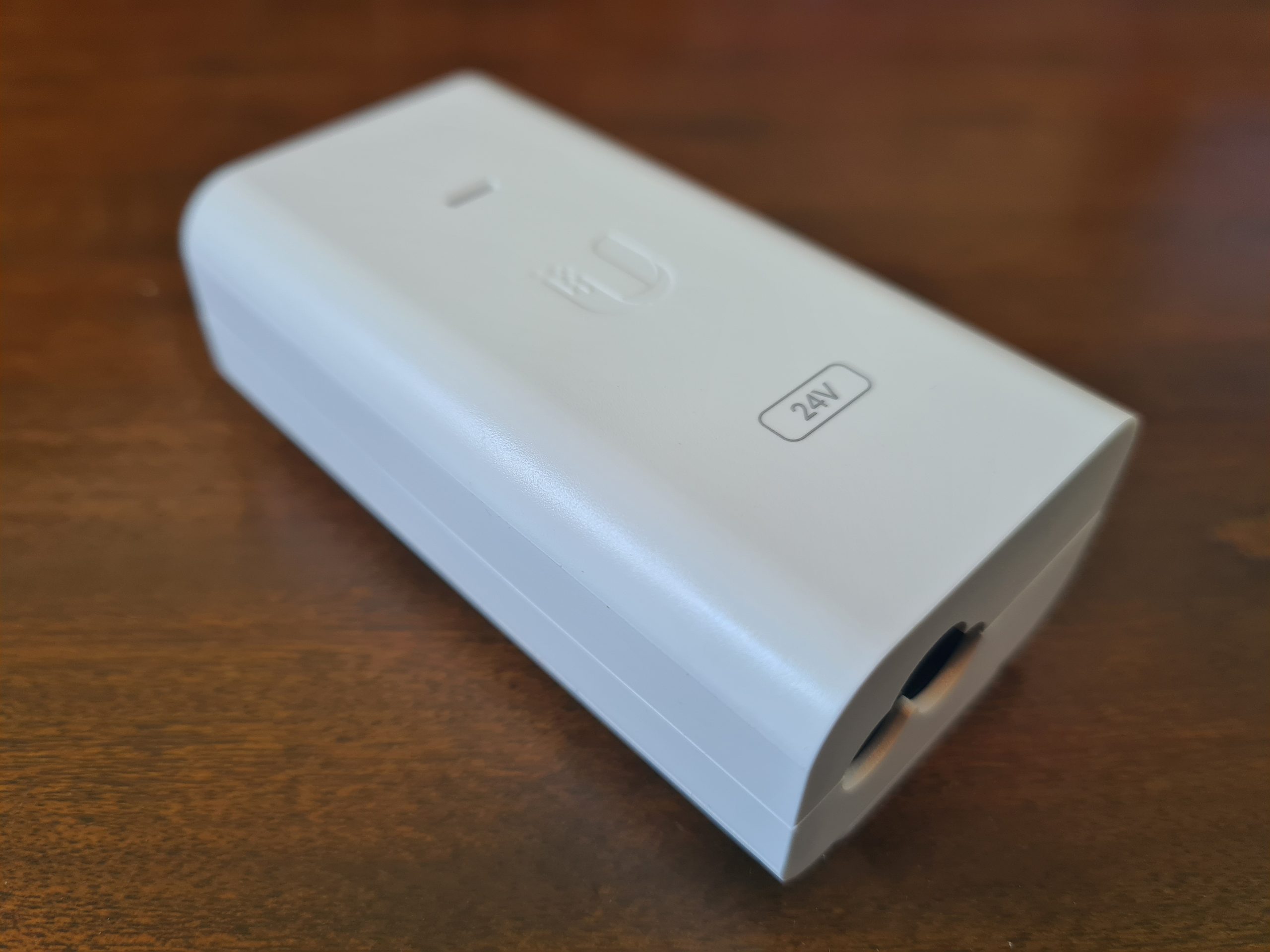

3. UniFi Power over Ethernet (PoE) Injector​

The PoE injector allows you to power the access point through the Ethernet cable, eliminating the need for a separate power cable at the mounting location.

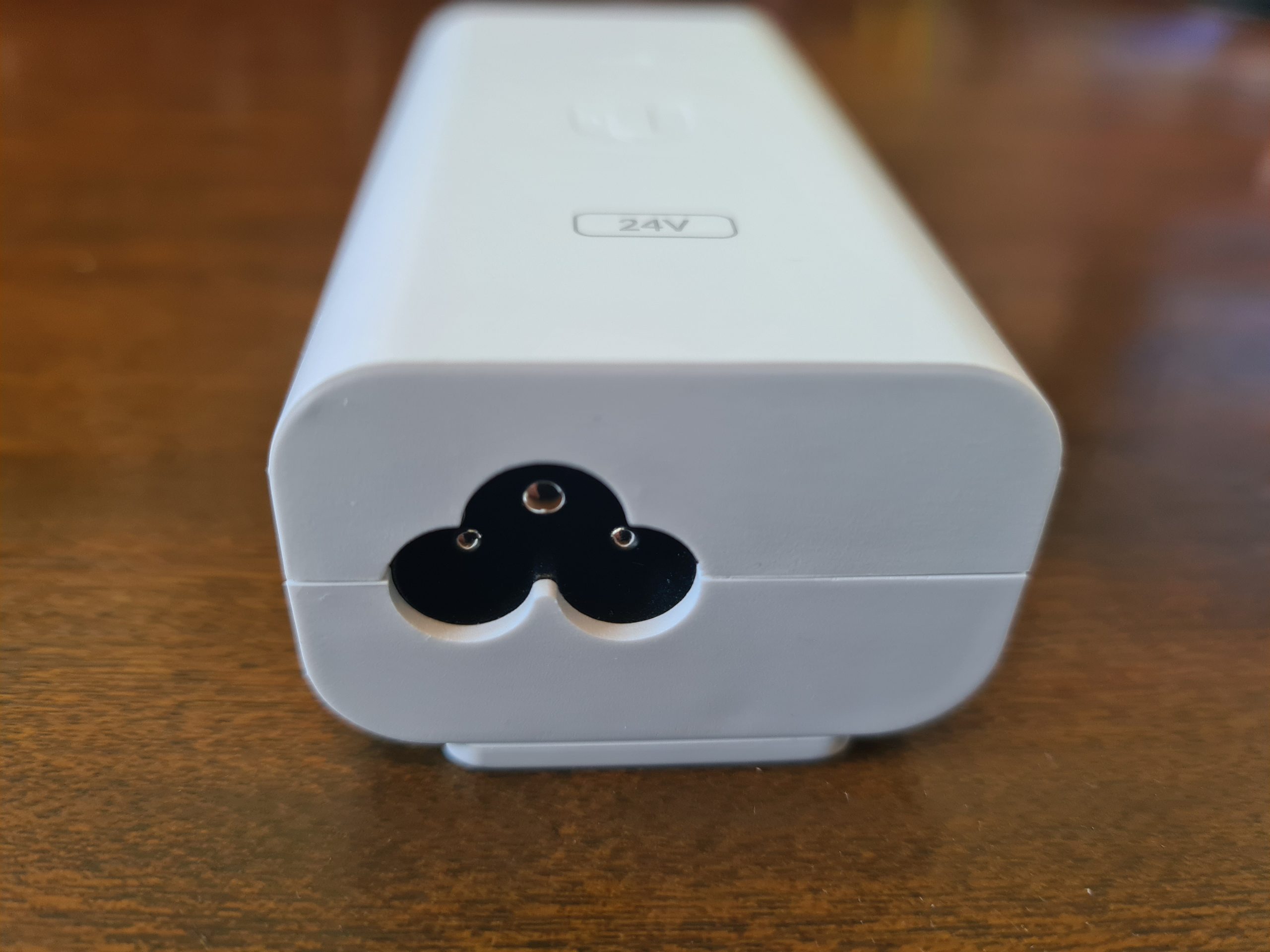

PoE Device Front PoE Device Ports

Features:

  • 24V passive PoE output
  • LAN input port (connects to your network)
  • PoE output port (connects to access point)
  • LED indicators for power and PoE status
  • Compact design for easy installation

4. Mounting Hardware​

Complete mounting kit for ceiling or wall installation.

Included Hardware:

  • Mounting bracket/plate
  • Ceiling/wall mount adapter
  • Security lock mechanism

5. Installation Screws and Anchors​

Hardware Kit Contains:

  • 4x mounting screws
  • 4x wall anchors (plastic plugs)
  • 2x bracket screws
  • Installation template

Suitable for:

  • Drywall/plasterboard
  • Wood surfaces
  • Concrete (with appropriate drill bit)

6. Ethernet Cable​

One CAT5e Ethernet cable is included for connecting the PoE injector to your access point.

Specifications:

  • Length: 2 meters (6.5 feet)
  • Category: CAT5e
  • Color: White
  • RJ45 connectors on both ends

Additional Items​

Quick Start Guide​

A printed quick start guide with:

  • Basic setup instructions
  • LED indicator meanings
  • QR code for online setup wizard
  • Support contact information

Regulatory Information​

  • Compliance certificates
  • Safety information
  • Warranty documentation

Package Verification Checklist​

Before installation, please verify you have:

  • UniFi AP-AC-Lite access point
  • Power adapter with correct regional plug
  • PoE injector
  • Mounting bracket and hardware
  • Screws and wall anchors
  • Ethernet cable
  • Quick start guide
  • Regulatory documentation

Missing Items?​

If any items are missing from your package:

  1. Check all packaging materials thoroughly
  2. Regional adapters may be packed separately
  3. Small hardware items may be in sealed bags

If items are still missing, contact support:

Storage Recommendations​

If not installing immediately:

  • Store in original packaging
  • Keep in dry, cool location
  • Avoid extreme temperatures
  • Retain all documentation

Next Steps​

Once you've verified all components are present, proceed to:

For detailed installation instructions with images, refer to our complete setup guide.
